Introduction to VNN1NV04PTR-E

The VNN1NV04PTR-E is a high-side power switch developed by STMicroelectronics. It is a monolithic device that combines a full-featured power switch with a protection and diagnostic circuitry. The VNN1NV04PTR-E power switch is specifically designed to meet the demands of a wide range of electronic applications, providing designers with a reliable platform to create innovative and efficient electronic designs.

Features

The VNN1NV04PTR-E power switch incorporates a wide range of features that contribute to its performance and reliability:

• High-Side Switch: The power switch is a high-side driver that can control loads connected to the positive supply rail. This feature makes it suitable for applications that require efficient and reliable control of high-current loads.
• Integrated Protection and Diagnostic Circuitry: The power switch includes integrated protection and diagnostic circuitry that provides protection against over-temperature, over-current, and short-circuit conditions. It also features a diagnostic feedback circuit that provides information on the status of the load and the power switch itself.
• Low On-Resistance: The power switch features low on-resistance of 40 mOhm, enabling efficient power delivery and minimizing losses in the power system.
• Wide Input Voltage Range: The power switch is designed to operate in a wide input voltage range of 7V to 36V, making it suitable for use with a variety of power sources.
• High Energy Capability: The power switch is capable of handling high energy levels, making it suitable for applications that require reliable and efficient power delivery.
• RoHS Compliant: The power switch is compliant with the Restriction of Hazardous Substances (RoHS) directive, ensuring environmental safety and compliance with regulatory requirements.

Specifications

The following table provides an overview of the key specifications for the VNN1NV04PTR-E power switch:

Conclusion

The VNN1NV04PTR-E power switch from STMicroelectronics offers high performance, diagnostic feedback, and advanced features specifically tailored for a wide range of electronic applications. With its high-side driver configuration, integrated protection and diagnostic circuitry, and low on-resistance, it provides a reliable platform for a wide range of electronic designs.

Whether you're developing motor control systems, lighting systems, or power management applications for electronic systems, the VNN1NV04PTR-E power switch delivers the capabilities needed to meet your project requirements. With its wide input voltage range, high energy capability, and RoHS compliance, it enables you to create innovative electronic designs that excel in performance, reliability, and environmental safety.

STMicroelectronics provides a complete suite of development tools, including reference designs, evaluation boards, and software libraries, to support designers throughout the development process. These tools streamline the design process, allowing you to efficiently bring your electronic projects to life.

To learn more about the VNN1NV04PTR-E power switch, refer to the datasheet and application note provided by STMicroelectronics. These resources offer detailed information on the power switch's specifications, electrical characteristics, and application details.

Choose the VNN1NV04PTR-E power switch for your high-performance electronic power management projects, and leverage its advanced features, diagnostic feedback, and high energy capability to create cutting-edge electronic designs. With its exceptional performance and functionality, it empowers you to bring your ideas to life and drive innovation in the field of electronic power management.

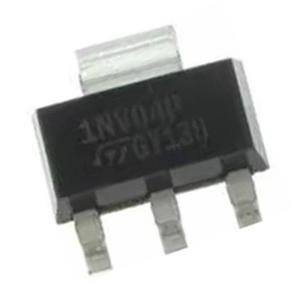

Cheap Wholesale PMIC VNN1NV04PTR-E VNN1NV04PTR VNN1NV04 TO-252 Power management chips with low price IC Images
